ADVANCED CAPABILITIES

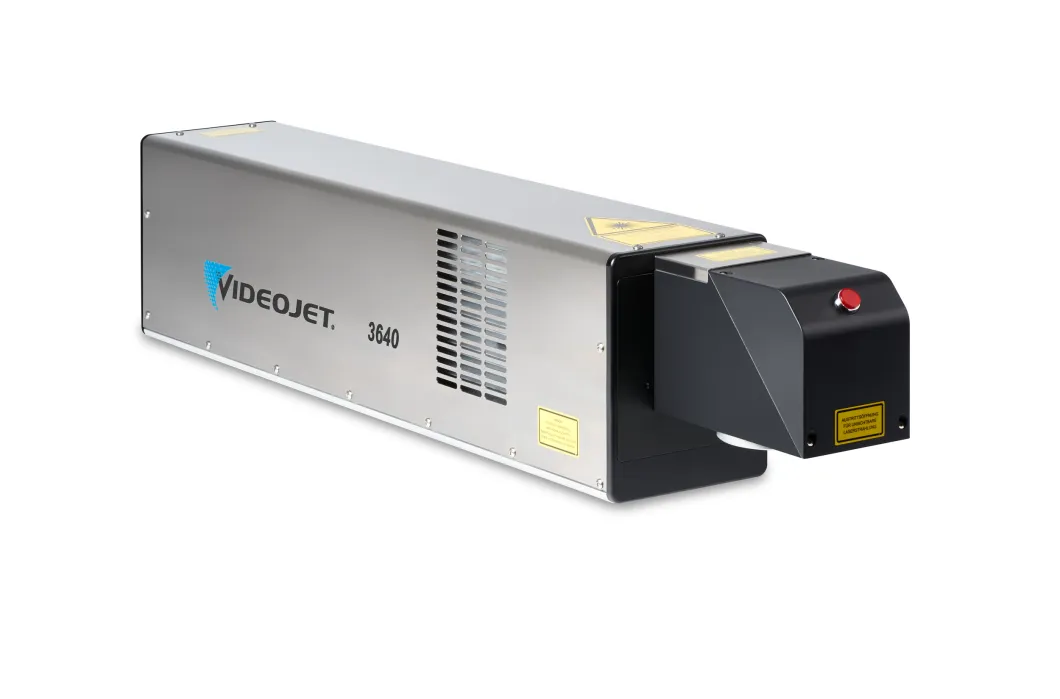

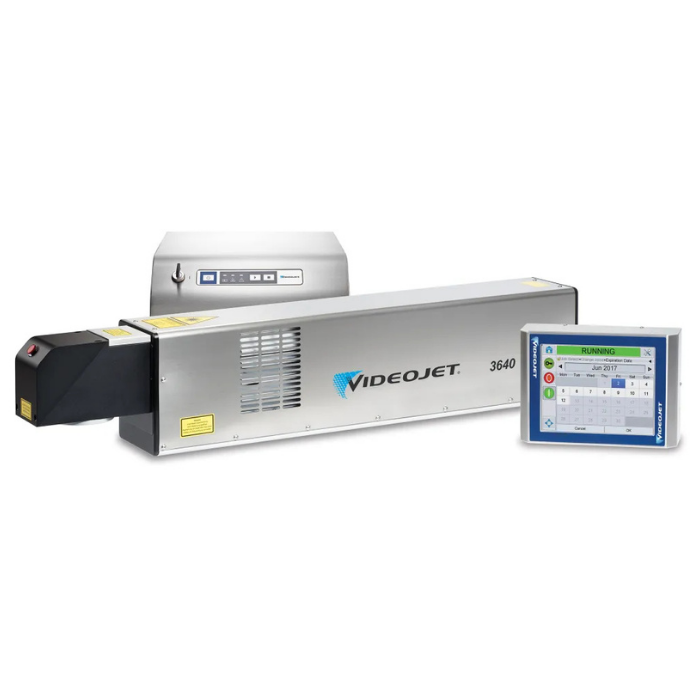

The Laser CO2 3640 marking machine is engineered to help address high-speed and high-volume applications in the pharmaceutical, tobacco, and beverage markets. It is a compact high-speed laser system and has been designed to process complex codes at high speeds, with the industry’s widest mark field.
Uptime Advantage helps keep productivity up and costs down:
- Increase throughput with 60 watts of power, optimized for high-speed and high-volume production lines
- Maximize printer availability with long-life, air-cooled laser sources that virtually eliminate maintenance intervals
- Optional VideojetConnect™ Remote Service allows access to Videojet experts to help improve productivity and troubleshoot potential issues
Industrial design engineered for high performance:
- Suitable for harsh environments, where dust and humidity are a challenge and where the system is regularly washed down
- Available with an ingress protection level of IP65
- Designed for 24/7 operation in beverage, food, pharmaceutical, and tobacco line
Flexibility and simple usability come as standard:
- Compact, highest-powered laser marking system in the industry
- Easily integrate the laser marking system even into production lines that have space limitations
- Largest marking field reduces the number of lasers that are required to cover multi-lane / wide web applications, reducing investment and running cost
SPECIFICATION
| Specification | Value |
| Laser Tube | CO 2 |
| Maximum Power | 60W |
| Laser Machine Cooling | Air cooled |
| Maximum Print Speed | 2000 characters/sec maximum |
| m Line Speed | 15 m/sec (49 ft/sec) |
| Environmental Protection | IP54, IP65 |
| Beam Output | Steered Beam |
| Laser Source Expected Life | 45,000 hours |
| Laser Wavelength Options | 10.6 μm, 10.2 μm, 9.3 μm |
| Focal Distance Options | 64 mm (2.50 in) – 600 mm (23.62 in) |
| Maximum Mark Window | 601 x 440 mm (23.66 x 17.32 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Handheld |
| Optional User Inteface | PC, CLARiTY™ Laser Controller, TCS |
| Umbilical | Detachable , 3 lengths |
| Plant Air Used | No |
| Certifications/Approvals | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
APPLICATIONS & VIDEO

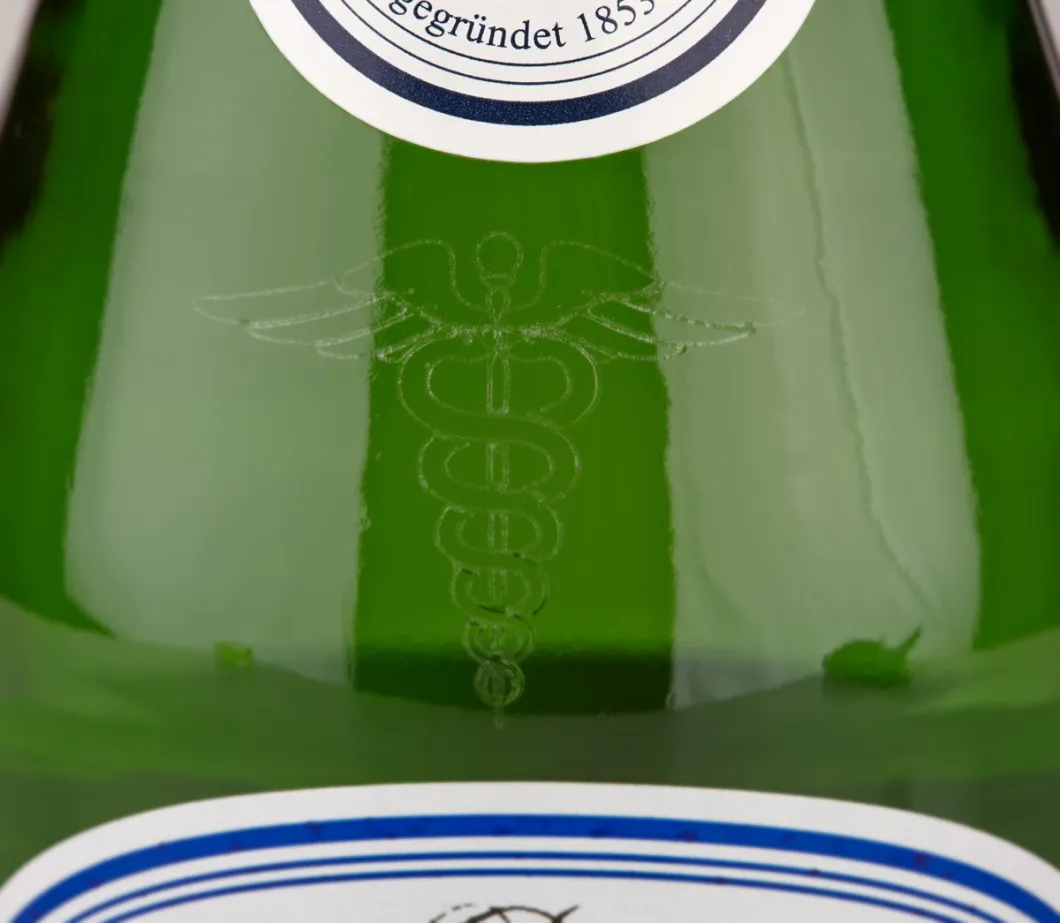

Beverage

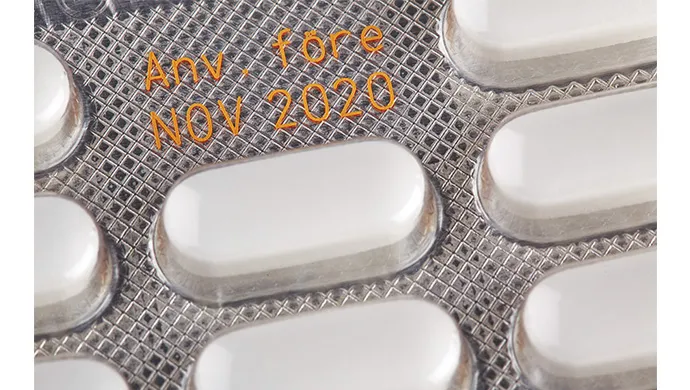

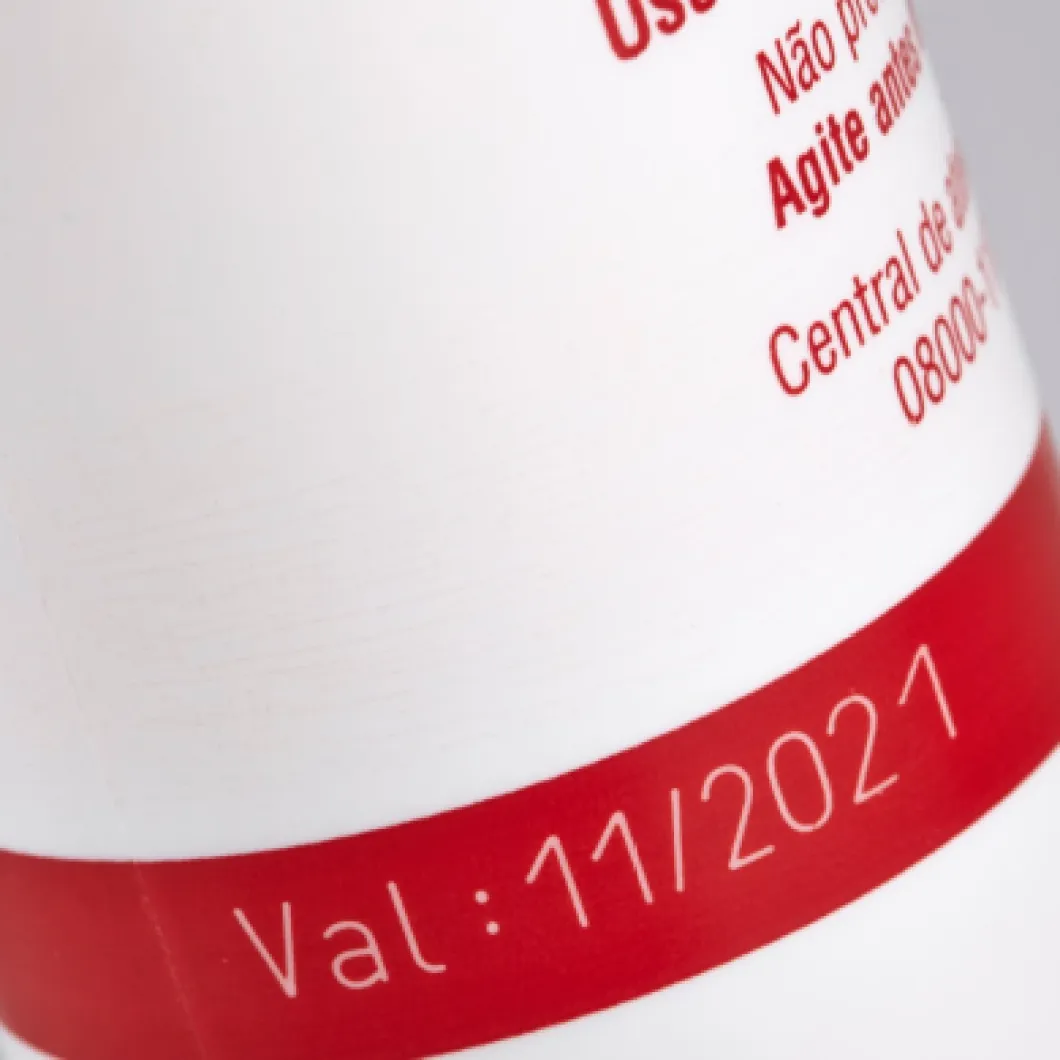

Pharmaceutical & Medical Devices
Tobacco

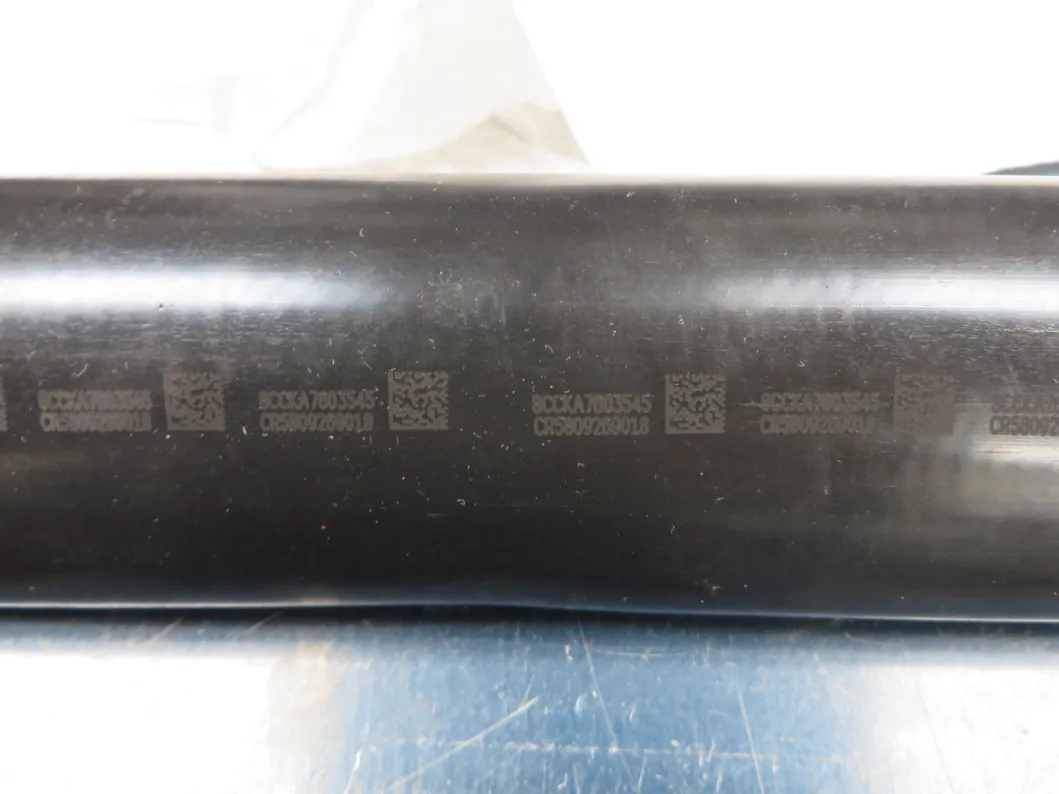

Additional Applications
- Other food sectors
Maddox Zane –
I use Videojet 3640 to engrave date and QR code on plastic packaging at high speed, the engraving is sharp and clear. The machine runs stably, does not need ink so it is very clean, reducing operating costs. Suitable for large-scale production.
