Videojet 1580C – VJ1580C

The 1580 C is a dedicated soft-pigmented contrast printer that performs and behaves like a standard dye-based printer
It delivers industry-first performance using soft-pigmented contrast inks, providing superior uptime and enabling you to achieve your marking and coding objectives both now and in the future
The 1580 C has similar maintenance requirements and running time to a standard CIJ printer, due to design innovations in our hydraulics, printhead, and cartridge
Based on our tried and trusted Videojet 1580 inkjet printer platform, the
1580 C has a similar design, with many of the same great features
The 1580 C is one of the simplest CIJ printers to operate and maintain, and was designed to print consistently high-quality codes with strong contrast

Table of contents

Specs

Specification	Value
Printheads	1
Inks	Soft-pigmented
Maximum Lines of Print per Printhead	5
Maximum Line Speed ⁽¹⁾	271 m/min (889 ft/min)
Environmental Protection	IP55 (Dust Kit IP65 #)
Umbilical Length	3 m (9.8 ft) optional 6 m (19.6 ft)
Message Storage Capability	More than 250 complex messages
Smart Cartridge™	Included
Plug and Play Printhead Modules	Included
USB	Included
Communications	Ethernet LAN™; Built-in Wi-Fi; optional Cellular connectivity
Linear and 2D Bar Codes	Included
Positive Air / CleanFlow™	Optional
Display (User Interface)	SIMPLICiTY™ based 10 inch color touchscreen

⁽¹⁾ Based upon single line, 10 characters per inch

Prevent a downtime event with an additional 8 hours minimum of runtime using a make-up reserve tank that protects your production under normal operating conditions
Replace preventive maintenance components easily and reliably, with no additional production downtime
Videojet Dynamic Calibration automatically maintains superior print quality, for optimum uptime under changing environmental conditions

Lower the opportunity for coding errors with intelligent message creation functionality
Automate code content without the need for operator interaction with user definable message rules
Streamline message creation and job set-up to start coding products quicker

Eliminate potential user errors through a Videojet SIMPLICiTY™ interface that greatly reduces operator printer interactions

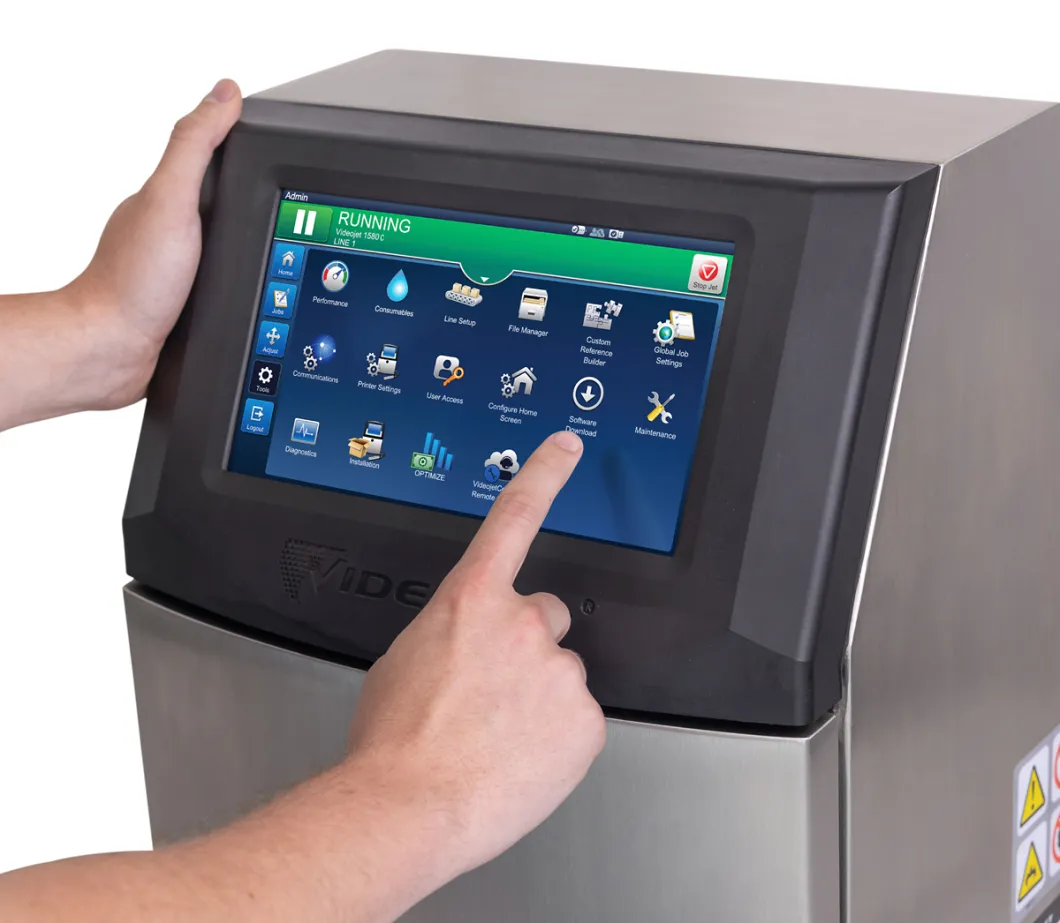

Easy to operate tablet-inspired 10” touchscreen display that is intuitive to you and translated to native language
Customize interfaces with built-in wizards, and access guided video tutorials for routine printer tasks

Built-in Wi-Fi and webserver capability provide easy and secure wireless communication
Analyze your individual use patterns and recieve printer improvement opportunities via on-screen alerts
Access technical experts at the touch of a button through optional VideojetConnect™ Remote Service (depending on local availability)
Webserver capability allows access to printers via supported web browsers on host computers
