Non-carbonated Water Production Line 3 in 1 (Series Rinser-Filler-Capper) – DGY Series

1. The production capacity is based on bottles of 500ml. It may be affected by the size and shape of customers’bottles.
2. Best Crown reserves the right to change these data according to the specific conditions.

ADVANCED CAPABILITIES:

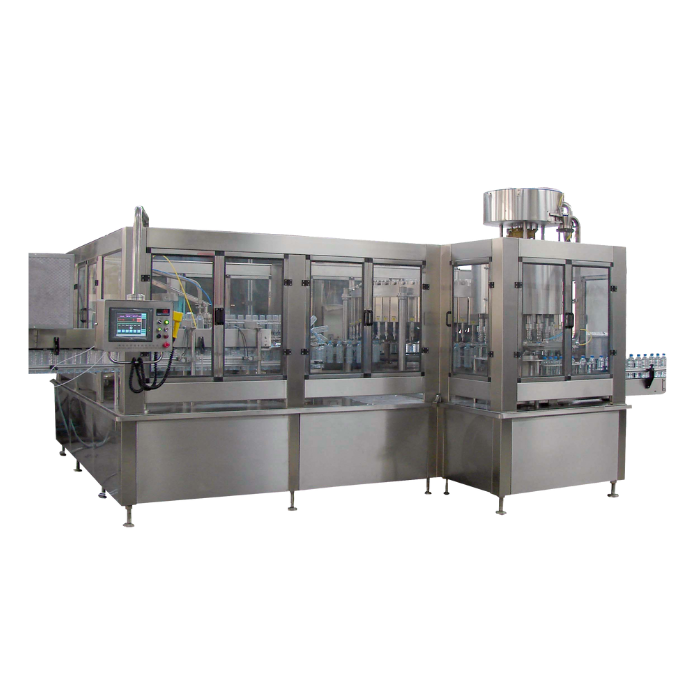

DGY series rinser-filler-capper monobloc is an efficient automatic liquid packing machine that perfectly combines bottle rinsing machine, pressure filling machine and capping machine. Empty bottles are orderly fed into the rinsing machine by an air conveyor, and then are turned over and washed inside by the nozzles. After dripping, bottles are automatically sent to the filling machine for high quality and high speed filling. At last, the capper is used for safe and reliable capping of these bottles.

Features

1. All parts in contact with liquid and material are made of superior stainless steel to meet the requirement of food hygiene, for example, the filling valves utilize stainless steel 316.
2. Adopting pressure type filling, the filling machine can accurately fill at high speed while maintaining high filling quality.
3. Bottles are fed by the air conveyor, conveyed by clipping the bottle neck, and put out via the conveyor chain, thus making it easy and convenient to change bottle size.
4. The use of the advanced “PICK, PLACE” capping system assures reliable capping. Besides, the magnetic clutch capping head with torque calibration help achieve easy torque adjustment.
5. Our bottled water production line is controlled by frequency conversion motor PLC man-machine interface. So production speed, shift production and failure alarm etc. are displayed on the screen for simple operation.
6. The machine is equipped with stainless steel shield and safeguard door (made of organic glass, with safety electrical switch). The machine will automatically stop when the door is opened. In addition, handle switch and scramming buttons are equipped at the four corners of the machine.
7. Rinsing clips made of stainless steel avoid bottle neck pollution.
8. There is a stopper on the slide way of caps, which can stop the moving conversed caps and take them out. The cap magazine and cap slide way are equipped with detectors to detect the cap quantity and position for controlling the speed of cap conveyor and the machine. The machine will automatically stop and alarm if there is no cap or few caps on the slide way.
9. Our bottled water production line is also equipped with bottle detectors. When there is no bottle or the bottles are blocked, the machine may automatically slow down or stop.

SPECIFICATION

1. The production capacity is based on bottles of 500ml. It may be affected by the size and shape of customers’bottles.
2. Best Crown reserves the right to change these data according to the specific conditions.
