ADVANCED CAPABILITIES

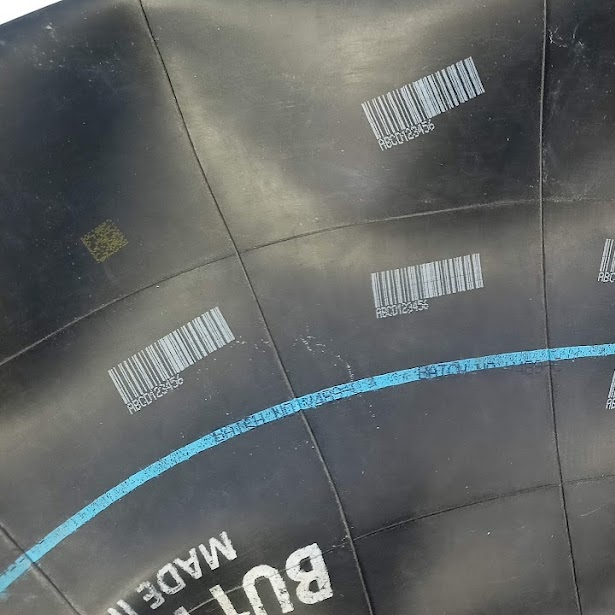

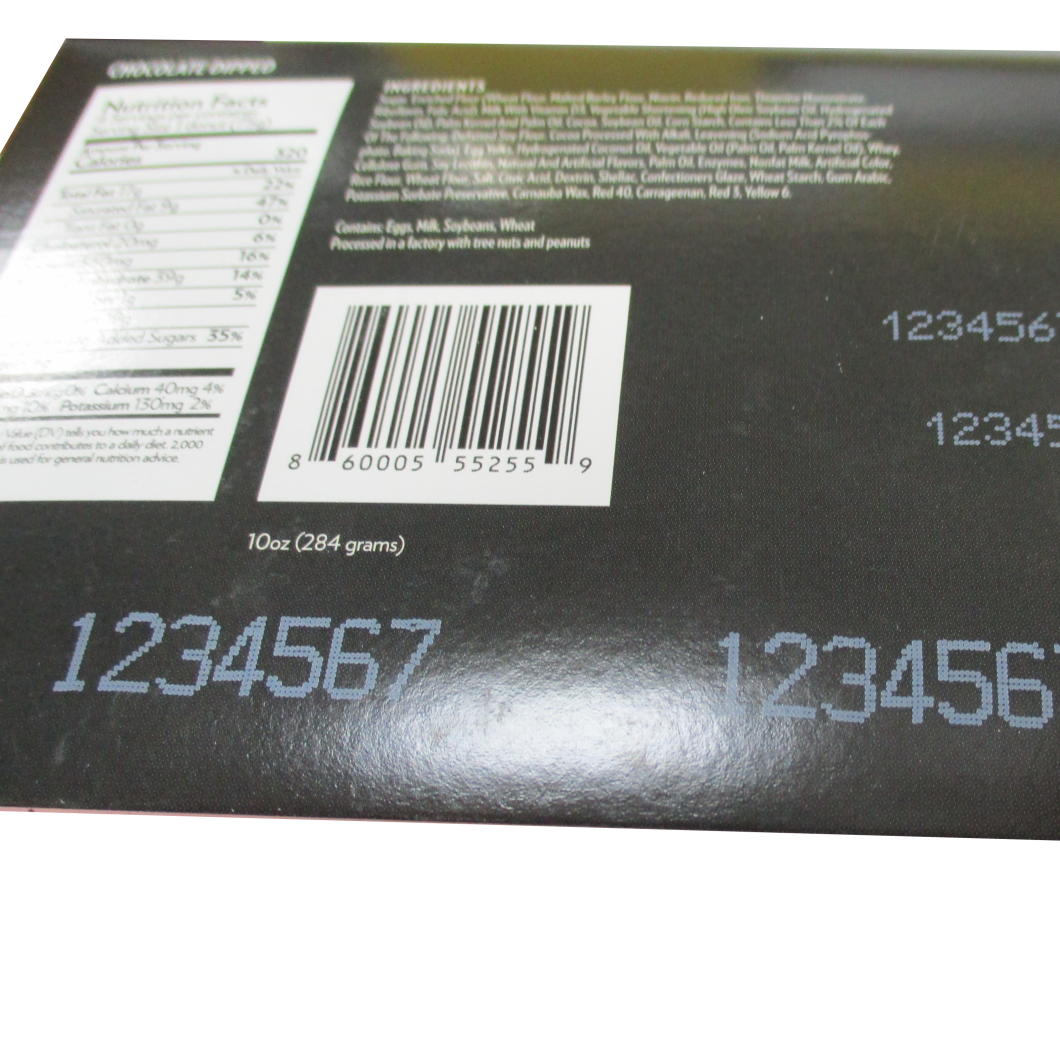

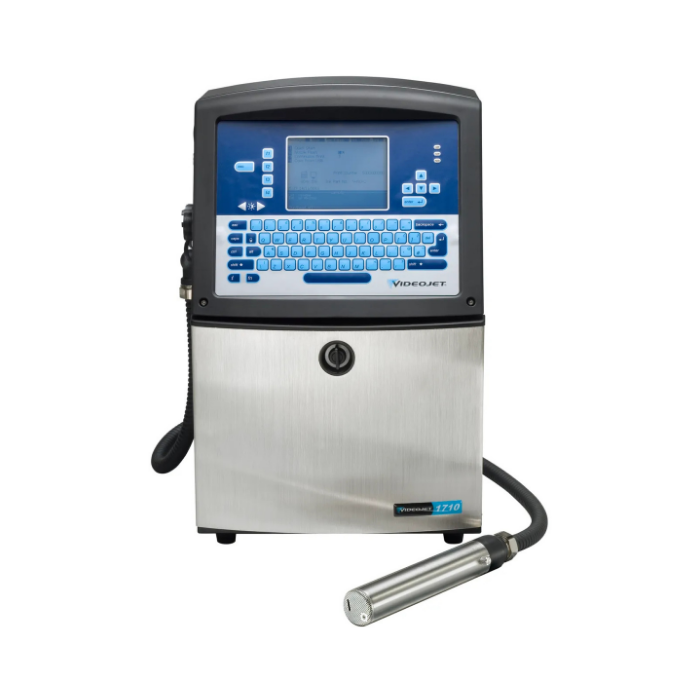

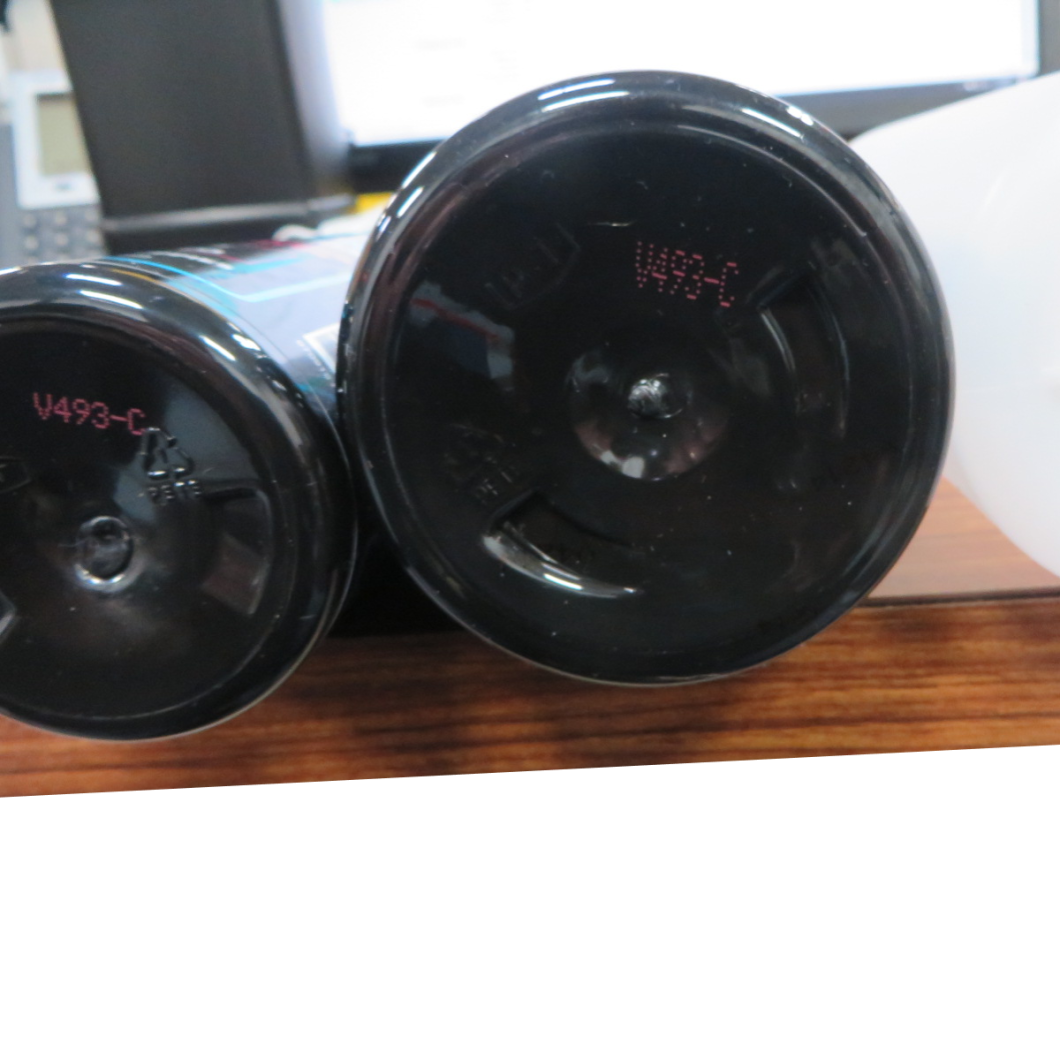

For applications that require easily readable variable data codes on dark or difficult to mark materials, Videojet Technologies Inc. has designed the Videojet 1710 small character inkjet coder . Videojet 1710 CIJ Printer uses high-contrast, pigmented inks to create bright, clean codes on surfaces for which dye-based inks are not effective, such as colored glass, rubber tubing, plastic cabling and dark paperboard. It is capable of printing a variety of fonts in multiple languages, as well as linear bar codes, 2D DataMatrix codes, custom logos and graphics.
Capabilities to meet your fast production lanes:
- Dynamic Calibration™ adjusts jetting parameters automatically to ensure high quality print
- The unique fluid system assures proper dispersion of pigments while printing, or when idle for long periods of time
- Print from 1 to 5 lines of text at high speeds:
- Single line max speed = 271 m/min (888 ft/min)
- Dual line max speed = 122 m/min (400 ft/min)
- Tri-line max speed = 67 m/min (221 ft/min)
Engineered for extended runs; Uptime Advantage via:
- CleanFlow™ technology resists ink buildup that can cause ordinary inkjet printers to shut down
- New conical ink reservoir minimizes natural effects of pigment settling
- Long run time between preventive maintenance; Up to 4,000 hours or 12 months (whichever occurs first) core life
- Internal pump means no external air, minimizing potential for contaminants to enter ink stream
- Auto cleaning printhead for fast start-ups even after extended shutdowns
No mess, no waste fluid delivery:
- Innovative fluid management system simply and reliably delivers ink to the products you need coded without significant operator intervention

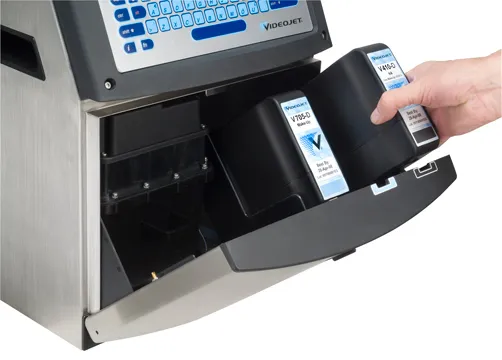

- Smart Cartridge™ fluid delivery system to virtually eliminate spills and help ensure the correct fluids are being used
Simple Usability via Videojet standard CIJ interface:
- Bright display with WYSIWYG and function keys for easy operation
- User levels to separate operation from installation and maintenance
- Prompted user fields to help reduce coding errors
SPECIFICATION
| Specification | Value |
| Printheads | 1 |
| Inks | Pigment Based |
| Maximum Lines of Print | 5 |
| Maximum Line Speed (1) | 271 m/min (888 ft/min) |
| Environmental Protection | IP55 (IP65 Optional) |
| Core Life (Maintenance Interval) | Up to 4,000 hours or 12 months (Whichever occurs first) |
| Umbilical Length | 3 m (9.8 ft) optional 6 m (19.6 ft) |
| Message Storage Capability | 250 |
| Smart Cartridge™ | Included |
| Plug and Play Printhead Modules | Included |
| USB | Included |
| Communications | Ethernet and RS-232 Serial |
| Positive Air / CleanFlow™ | Included |
| Expanded I/O Ports and Control | # |
| Display (User Interface) | LCD with membrane keyboard |
(1) Based upon single line, 10 characters per inch
APPLICATIONS & VIDEO

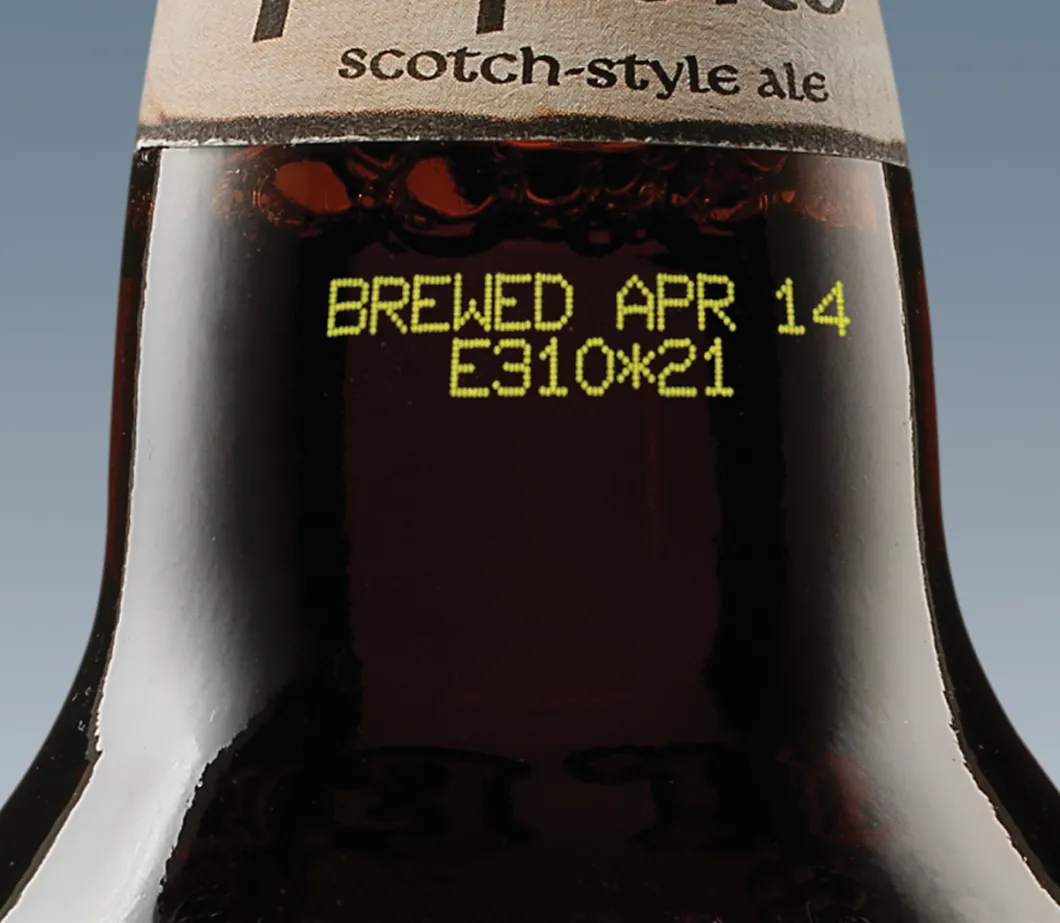

Beverage

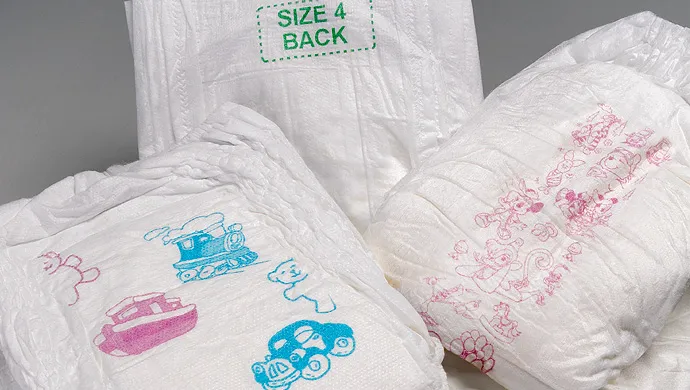

Cosmetics, Personal and Home Care
Chemicals
Additional Applications
Industrial Equipment
Electrical Components and Electronics

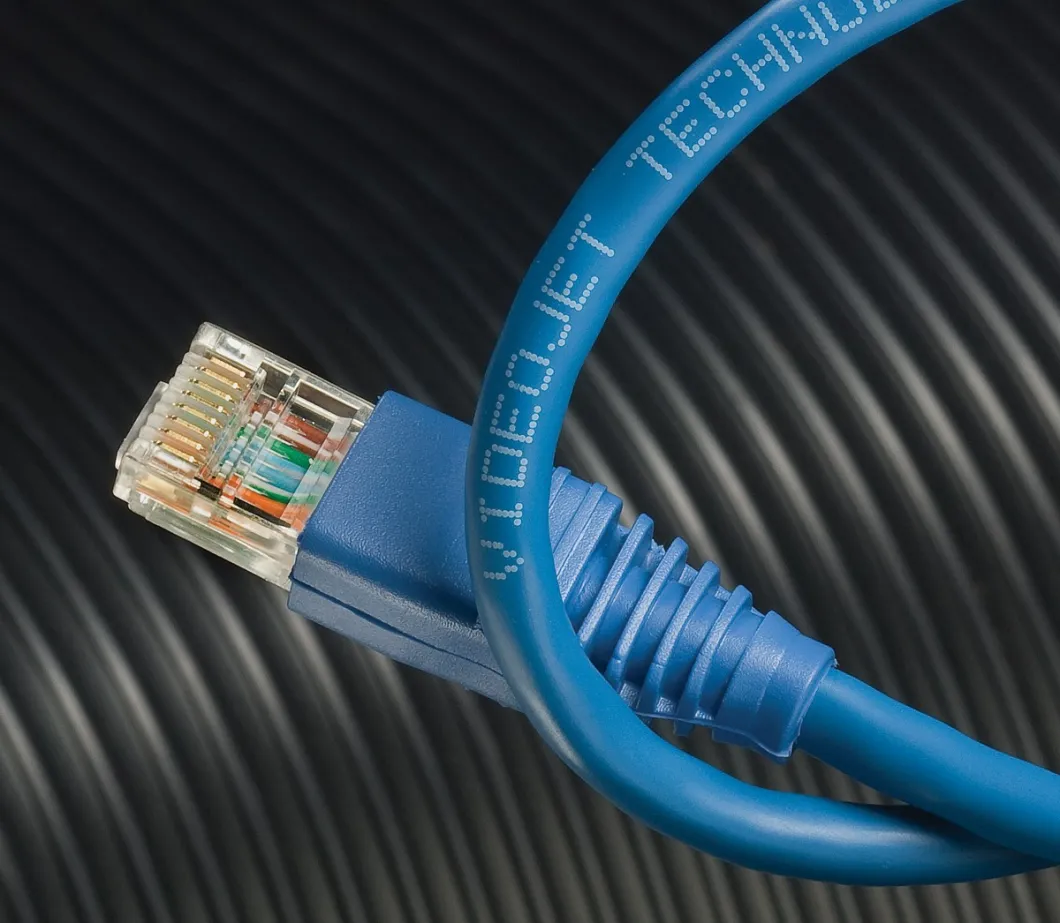

Wire, Cable and Pipe
Automotive and Aerospace
Erica Audrey –
The machine runs stably, at high speed, and consumes little solvent. After nearly 2 years of use, it still operates smoothly, without any major problems.
