ADVANCED CAPABILITIES

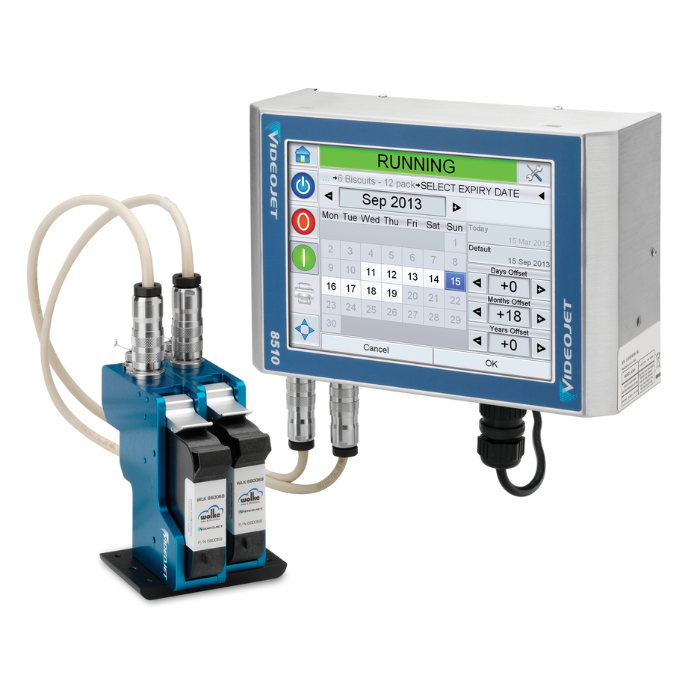

The Videojet 8510 and Wolke m600 touch thermal inkjet (TIJ) printers are high resolution printers that use HP® technology. These versatile printers feature a large CLARiTY™ touchscreen interface for easy operation, as well as provide a common look and feel to those familiar with Videojet’s CLARiTY-based printers. From basic alphanumeric codes to complex bar codes and graphics, the 8510 and m600 touch have the capability to print a wide range of codes on fast production lines.
Simple operation allows you to focus on production, not the printer:
- The 8.4 inch color touchscreen interface with easy to learn, icon based, controls
- Clean operation with genuine HP cartridges, virtually eliminating spills and mess
- Simple code selection and customer selectable rules prevent human error; all common functions accessed in five or fewer touches
Uptime Advantage saves money:
- No wear items or replacement parts outside of inkjet cartridge replacement
- Simple cartridge changes can occur in less than one minute, with no specialized training
High speed, high resolution printing:
- Print 600 x 600 dpi high resolution codes up to 50.8 mm (2 in) in height
- Wide range of bar codes including DataMatrix and stacked symbologies
- Maximum line speed of up to 75 m/min (250 ft/min) when printing at exceptional print quality of 600 x 240 dpi (faster speeds available at lower print speeds)
Ideal for packaging line integration; scalable for your operations:
- The small footprint and industrial design is easy to integrate into existing production lines
- Integrate printer via webserver functionality for remote control from third party HMI displays
- Data interfaces include TCP/IP, RS232, USB, ZPL and Text communication
- Advanced communication protocol for remote operation and high speed serialization. Printer supports both Text and Binary communication and offers select emulation of ZPL (Zebra Programming Language)
SPECIFICATION
| Specification | Value |
| Maximum Print Resolution | 600 x 600 dpi |
| Print Speed (1) | 1.5 – 75 m/min (5 – 250 ft/min) |
| Bar Codes | Multiple linear and 2D bar codes available including DataMatrix |
| Single Printhead Print Height | 12.7 mm (0.5 in) |
| Maximum Number of Printheads | Up to 4 |
| User Interface | CLARiTY™ 8.4 inch color SVGA LCD touch-panel |
| Data Interfaces | RS232, Ethernet, USB memory, select ZPL command emulation, Text communication |
(1) Line speeds are for 600 x 240 dpi. Faster line speeds are possible at lower print
APPLICATIONS – VIDEO
Building Materials
Cosmetics, Personal and Home Care
Pharmaceutical and Medical Devices
Candy and Confectionery
Baked Goods and Cereal
Tobacco
Joseph –
Print QR codes and product information, the printer is very clear, especially on paper and plastic packaging. The touch screen is easy to operate, ink replacement is quick, almost a year has passed without any errors.
